Demo Rover

The Demo Rover is the perfect base for your product exhibition. Its main features include a complete CAN system integrated into a robust aluminum chassis designed for durability and flexibility. The Rover is driven by an Electronic Speed Controller (ESC) controlling a high-performance engine, and has a powerful steering servo for controlling the wheels. These key components combine to deliver a reliable and versatile tool for showcasing various CAN or automotive products in a creative, eye-catching manner.

Contact us for ordering information.

Category:

Description

Ideal for those who want to showcase new products, the Demo Rover provides a flexible platform for innovation. This versatile product lays the groundwork for your ambitious projects. Included in this package is a complete CAN system, a chassis, an engine, an Electronic Speed Controller (ESC) and a steering servo.

The CAN system consists of two control modules based on the STM32F3 MCU coupled with 4 D-SUB interfaces. Besides CAN communication, the modules provide a PWM interface for controlling hobby servos and ESCs, a sensor input, SPI and I2C interfaces, and built-in voltage and current measurement capabilities.

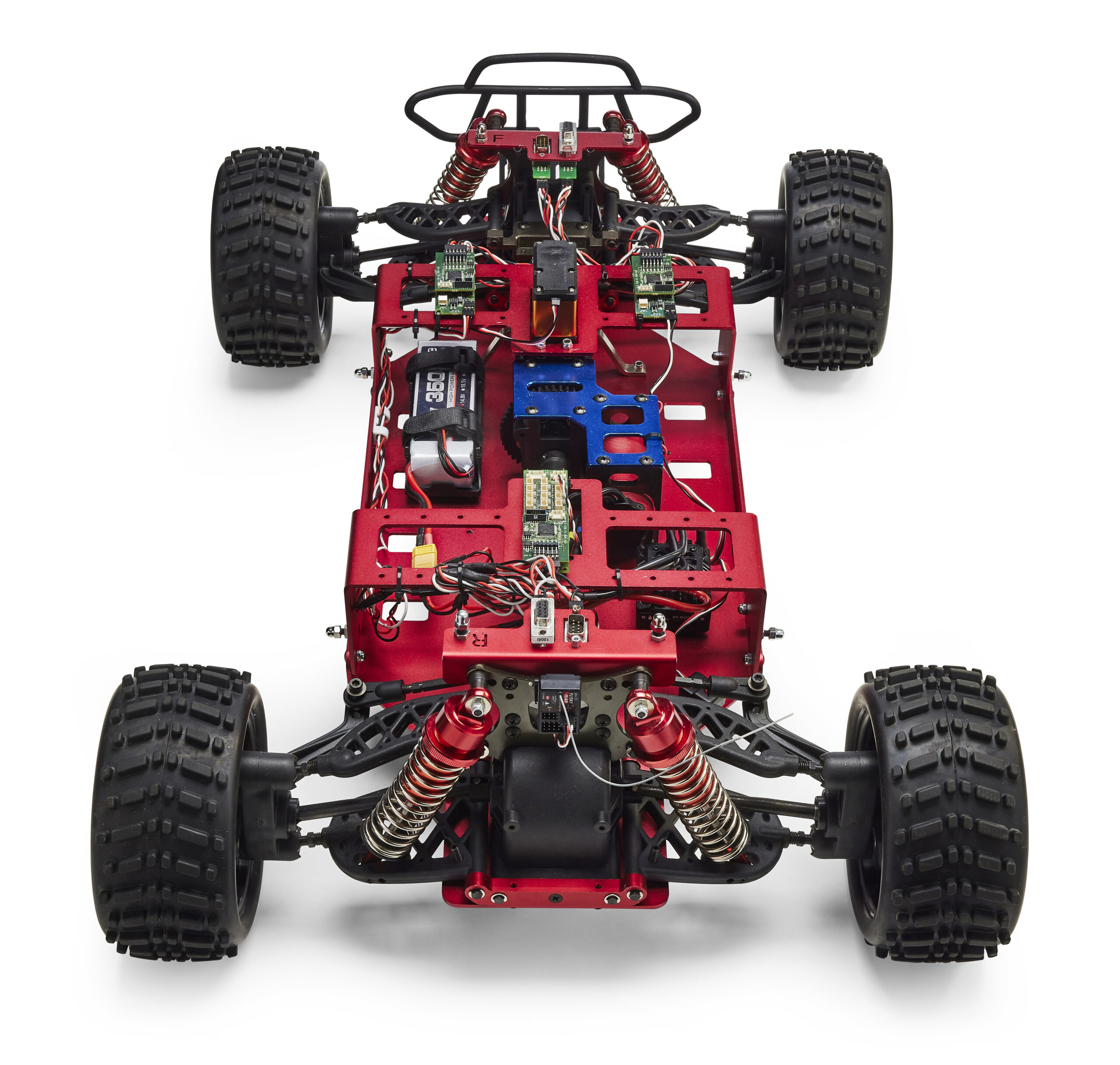

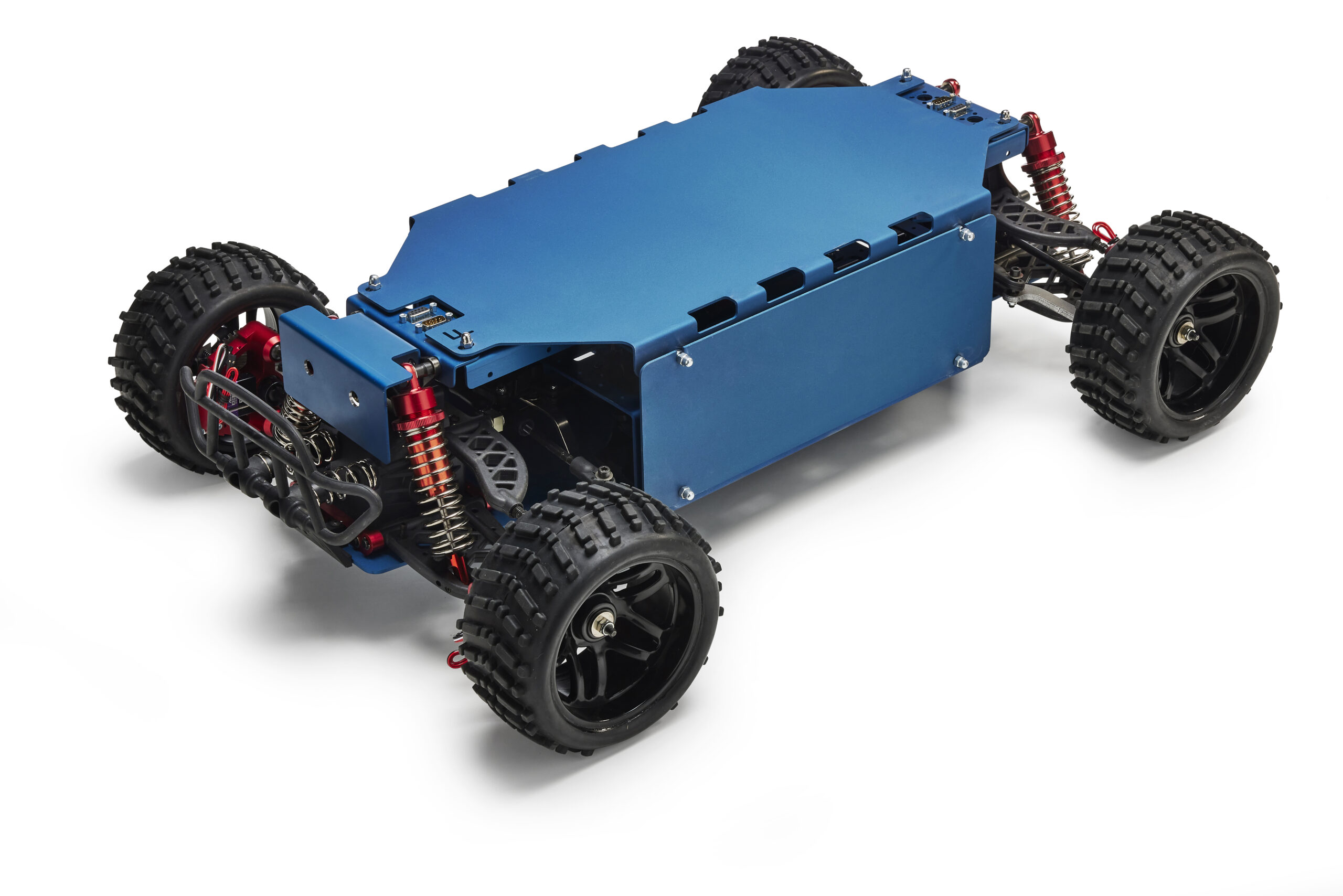

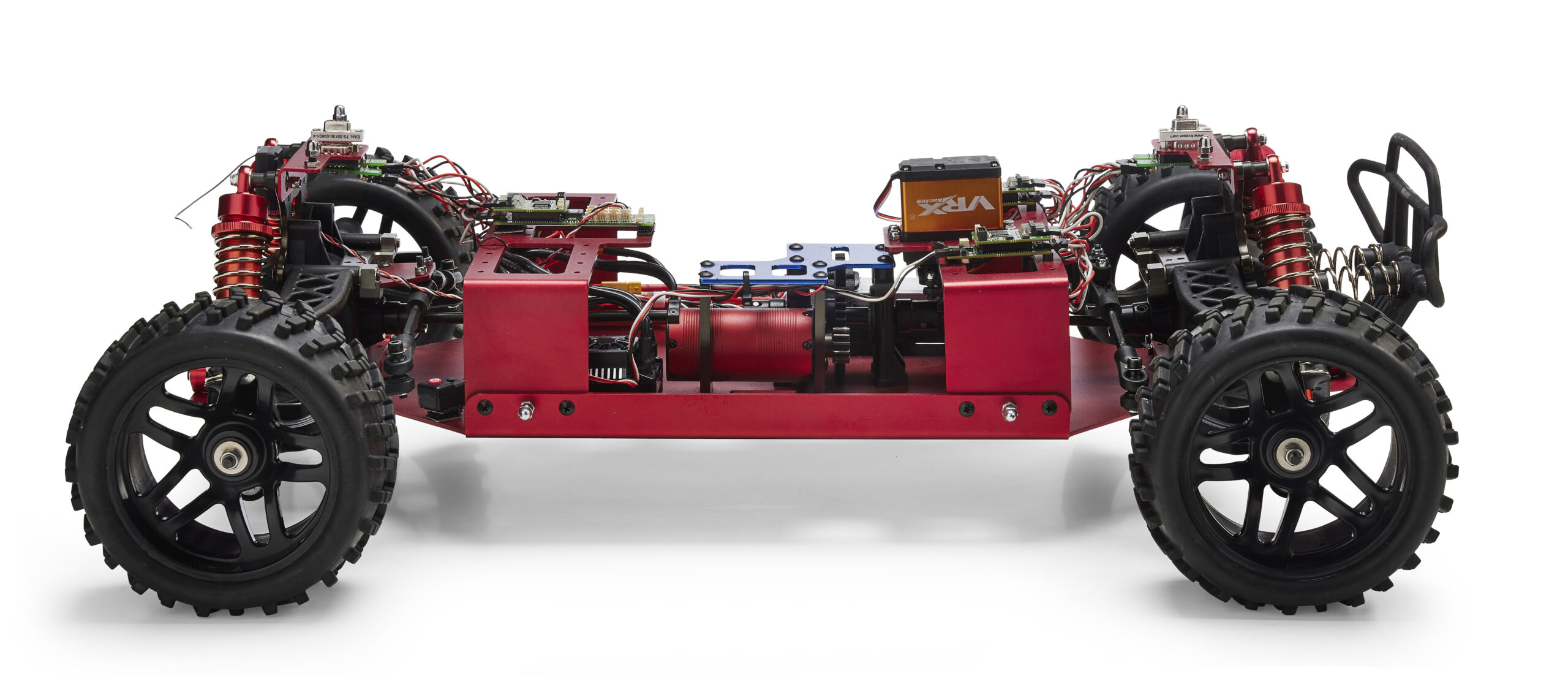

The chassis is what makes the Rover unique. It’s a durable, adaptable structure designed to accommodate various components and withstand rigorous testing. Made with high-quality materials, it’s ideal for customization, allowing easy integration of additional elements like sensors or actuators. This platform is the perfect starting point for integrating additional hardware and trying it out.

The engine of the Rover is a robust, high-performance brushless DC motor. With an operational voltage range of 7.4-50 V and a maximum power of 3000 W, it provides strong, consistent propulsion to the Rover. Its high-efficiency rate (92%) and capacity to operate under high temperature (up to 130 °C) ensure reliable performance in various conditions.

The ESC in the Demo Rover manages the energy flow from the battery to the brushless DC motor. It can handle a continuous current of 120A and peaks up to 650A, providing precise control over the Rover’s speed. Compatible with both sensored and sensorless brushless motors, the ESC ensures efficient and smooth operation of the Rover under various conditions.

Additional information

Wheelbase

567mm

Track width

435mm

Wheel diameter

160mm

Camber

Intermediate gear

48/12 = 4

Final gear

44/16 = 2.75

Engine

D43L86-400

Engine rotor type

6Ple

Engine RPM/V

400KV

Engine current@7.2V

1.5A

Engine operational voltage

7.4-50V

Engine max power

3000W

Engine max current

70A

Engine max efficiency

92%

Engine working temp. limit

130°C

Engine Dimensions

L86xD43.2mm

Engine extension shaft

L18xD5.0mm

Engine connector

4.0mm golden plug

Engine extension wire length

80mm

Electronic Speed Controller (ESC)

Performa Racing PA9346

ESC input

2-4S LiPo battery

ESC continuous current

120A

ESC peak current

650A

ESC BEC output switch mode

6V or 7.4V, 4A

ESC dimensions

48x35x35mm

ESC supported motors

Sensored & sensorless brushless

ESC weight

121g

ESC modes

Brake, Forward, Reverse
